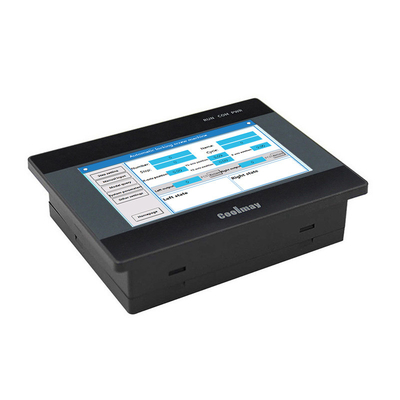

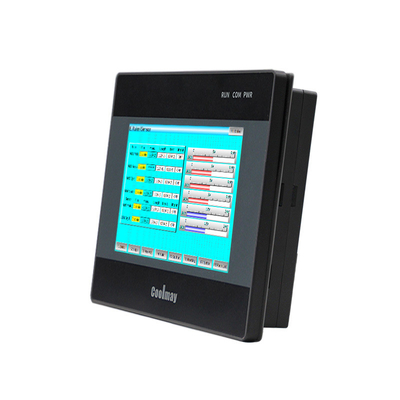

4.3 Inch HMI PLC Control Panel Programmable Logic PLC Controller Linear Arc Interpolation
| Место происхождения | Китай |
|---|---|
| Фирменное наименование | Coolmay |
| Сертификация | CE |
| Номер модели | EX3G-8043H-24MT |
| Количество мин заказа | 1 часть |
| Цена | Подлежит обсуждению |
| Упаковывая детали | Картонная коробка |
| Время доставки | 3-7 рабочих дней после оплаты |
| Условия оплаты | T/T, Western Union, MoneyGram, PayPal, Alipay |
| Поставка способности | 2000 ШТ. В ДЕНЬ |
Свяжитесь я бесплатно образцы и талоны.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Тип | HMI/PLC все в одном | Размер | 40,3 дюйма |
|---|---|---|---|
| I/O | 12DI/12DO | Цифровой данное | Транзистор |
| Протокол | MODBUS RTU | Программа | свободный |
| Выделить | 4.3 Inch HMI PLC Control Panel,Programmable logic HMI PLC Control Panel,Programmable Logic PLC Controller |
||
Характер продукции
4.3 Inch HMI PLC Control Panel Programmable logic PLC Controller linear arc interpolation
Model:EX3G-8043H-24MT
- 4.3inch touch screen
-12DI/12DO
- Mini B type USB port
- Rs232/485 port
| Model | EX3G-8043H | |
| Display | Dimension | 134*102*34mm |
| Panel | 4.3 inch Four-wire resistive panel | |
| Cutout size | 120*94mm | |
| I/O | DI/DO | 12DI/12DO |
| DO type | Relay MR or MOS | |
| (Relay output: max load 5A/ MOS output: max load 2A) | ||
| Analog I/O | 4AI/2AO | |
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | |
| 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | ||
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
| High-speed function | High-speed counting | Single phase 6 channel 60KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. | |
| High-speed counting + high-speed pulse < 480KHz | ||
Features:
- Support interrupt
- linear arc interpolation
- PID auto-tuning
- 32K program capacity
- 32K retentive register
PLC analog wiring:
Two-wire system: The positive pole of the power supply is connected to that of the transmitter, and the negative pole of the transmitter is connected to the AD side, and the negative pole of the power supply is connected to the GND. Generally it is the wiring method of the 4-20MA/0-20MA transmitter.
Three-wire system: The positive pole of the power supply is connected to that of the transmitter. The negative of the power supply and that of the signal output are the same terminal. The transmitter signal output is connected to the AD terminal.
Four-wire system: The positive and negative terminals of the power supply are connected to those of the transmitter respectively, and the positive and negative of the transmitter signal outputs are connected to the AD and the GND terminal respectively.
The two wires of the temperature analog are connected to the AD and the GND terminal respectively. If it is a three-wire PT100, it needs to be connected in two lines. The GND common terminal of the analog input and output can be shared.
PLC digital inputs wiring:
Ports short circuit: S/S of PLC input terminal is connected to 24V, X terminal is connected to power supply 0V, i.e., input signal.
Two-wire system (magnetic control switch): The positive pole of the magnetic switch is connected to PLC X terminal, and the negative pole is connected to 0V.
Three-wire system (photoelectric sensor or encoder): Sensor or encoder power supply is connected to power supply positive, signal line is connected to X terminal. Encoder and photoelectric sensor are NPN type (PNP is customized).
PLC digital outputs wiring:
Transistor: Output is NPN, COM is connected to the negative pole, and Y is connected to the positive pole of the power supply with a load.
Relay: Dry contact output, COM can be connected to the positive or negative.
