Coolmay 10 Inch EX3U-8100H-44MT-2AD2DA-485P Temperature Humidity Plc HMI Integrated Combo All In One Programmable Logic 8 Axis Controller
| Место происхождения | Китай, Шэньчжэнь |
|---|---|
| Фирменное наименование | Coolmay |
| Сертификация | CE ISO9001 ROHS |
| Номер модели | EX3U-8100H-44MT-2AD2DA-485P |
| Количество мин заказа | 1 шт. |
| Цена | negotiable |
| Упаковывая детали | картонный |
| Время доставки | 3-8 рабочих дней |
| Условия оплаты | T/T, Western Union, MoneyGram |
| Поставка способности | 15000 единиц в неделю |
Свяжитесь я бесплатно образцы и талоны.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Ввод | 24 В постоянного тока | Порт COM | 1x мини USB, 1x RS232, 1x RS485 |
|---|---|---|---|
| Измерение | 275*194*36 мм | Рама | 256 МБ ФЛАСШ |
Характер продукции

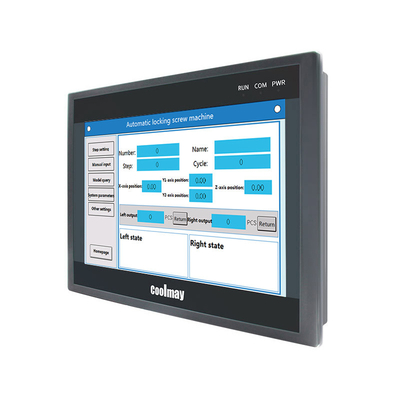

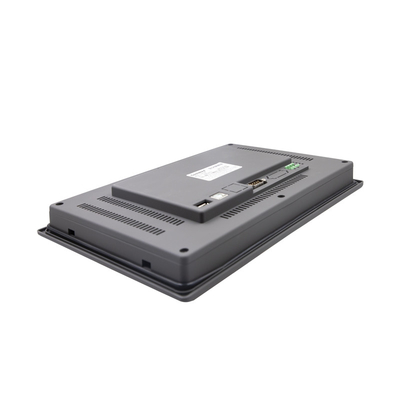

10 Inch Temperature Humidity Plc HMI Integrated Combo All In One Programmable Logic 8 Axis Controller
The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Feature:
1. Super functions.PLC operate fast.
2. Highly integration.The digital points are 24 inputs and 20 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 4 input and 2 output.It has 2PLCCOM port(Rs232and USB Port).1 downloading port on HMI
3. Support several high-speed counting and high-speed pulse.Acceleration and deceleration are independent.The total high-speed counting and pulse can not exceed 480KHz
4.32K steps program capacity.32K power-off retentive registers.support interrupt.linear and circular interpolation.PID self-adjusting
| Model | EX3U-8100H |
| Dimension | 275*194*36mm |
| Cutout size | 262*180mm |
| Input | 24VDC |
| Power Consumption | 6-8W |
| HMI | |
| Feature | 60K colors resistive touch screen, supports portrait display |
| Type | 10.1"TFT |
| Display size | 222*125mm |
| Resolution(pixels) | 1024*600 |
| RAM | 256MB (Please inquire if requires storing historical data) |
| ROM | 256MB |
| CPU | CPU Dual-core 1GHz |
| COM ports | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
| Software | Coolmay VCOOL |
| PLC | |
| I/O level |
- Input: Passive NPN, public terminal isolated - Transistor output: Low level NPN, COM connect to negative - Relay output: Normally open dry contact |
| DO type and load |
- MT: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM - MR: 2A/point, 4A/4 points COM, 5A/12 points COM. |
| High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz |
|
High-speed pulse (Only for MT models) |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| COM port | 1x mini USB, 1x RS232, 1x RS485 |
| Software | Compatible Vtool PRO |
Packaging & Shipping
- Packaging
The products will be under testing for 1-3 days and packed with carton box .
FAQ
1. Q: How about the warranty ?
A: We provide 12 months warranty for all the goods from us , and you can refund the goods with any quality problem in 15 days.
2. Q: How soon can I get my goods after I pay for the order?
A: We have the professional production line. It is about 1-2 weeks after you make the order. Certainly we could also arrange it first if you have urgent order.
3. Q: Are you a manufacturer or trade company?
A: We are both factory and trae company, we have engineers for study & design and workers for producing and operating etc. We could support you one-stop products and service.
4. Q: What about delivery ?
A: We have DHL/FEDEX/EMS/UPS forwarder with competitive price if you dont't have freight forwarder.
5. Q: Do you have a CE certificate?
A: Yes, for the products we exported, we could offer the CE for your customs.
